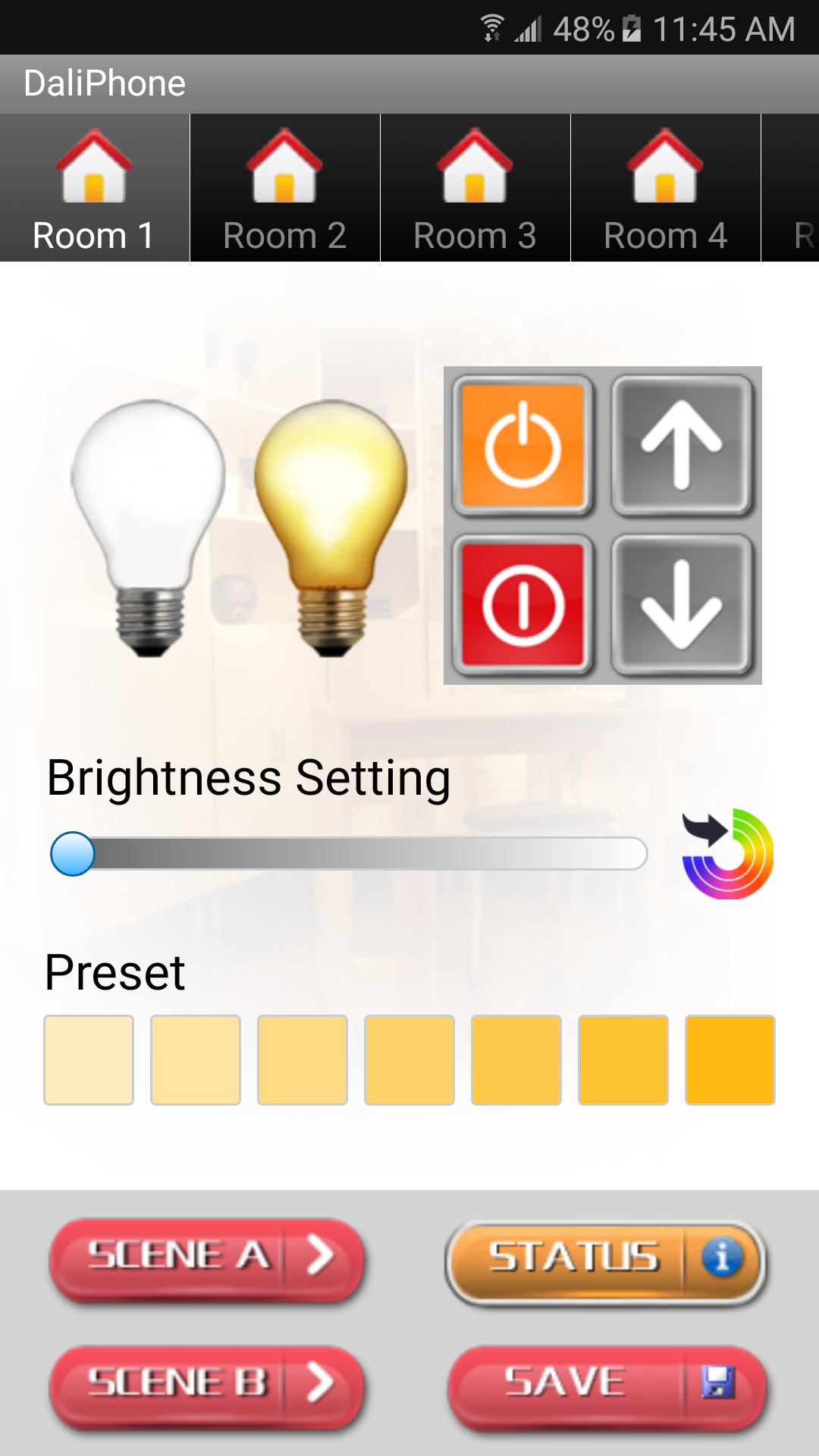

DaliPhone is a downloadable application installed on the Android phone and Apple iPhone, and
it can be be purchased online by clicking the link of
Play Store or
App Store. Its interface is made up by the Lighting module of
DaliSuites. The
standard model is 5-room, and the default room names are Room 1,
Room 2, Room 3, Room 4 and Room 5. The user can change the room name
to suit his/her preference for easy recognition. Other room models
are available upon request.
DaliPhone is designed to control the luminaire and device (such as, outlet or
sunblind) by sending commands to DaliHub through
local Wi-Fi connection.
Its Plug-and-Play capability can automatically discover the IP
address of DaliHub without the need of physical device
configuration, and thus no manual searching is necessary.
Personalized setting of light levels and two scenes are convenient
and user-friendly. Seven preset light levels have been
programmed, and furthermore any light level can be adjusted by scrolling
the slide bar. Tunable white luminaires with color temperature from 2700K CCT to 6500K CCT
can be set and saved to the scene.
|
|
|
|
Control Features
Besides providing the features of turning on/off outlet and rolling up/down of sunblind, DaliPhone
offers very comprehensive features for lighting control as illustrated follows, |
|
| 1) |
Total 5 rooms can be
controlled. |
| 2) |
Each room has 3 individual
groups each for luminaire, outlet and sunblind. |
| 3) |
The default applications
and descriptions of three assigned groups in each room are listed as below, |
| |
|
| Group |
Application |
Description |
Functions |
| First group |
Major |
Primary set of Luminaires |
On/Off, dimming, and tunable white |
| Second group |
Major |
Outlet |
On/Off |
| Alternate |
Second set of luminaires |
On/Off |
| Third group |
Major |
Sunblind |
Up/Down |
| Alternate |
Third set of luminaires |
On/Off |
|
| 4) |
Slider bar adjusts light level from 0%
to 100% and color temperature from 2700K CCT to 6500K CCT. |
| 5) |
7 preset light levels can be selected. |
| 6) |
2 lighting scenes can be saved and recalled. |
| 7) |
Query the status level of group member.
For details, please refer to below 2-way communication. |
|
| |
|
Tunable white
| |
|
|

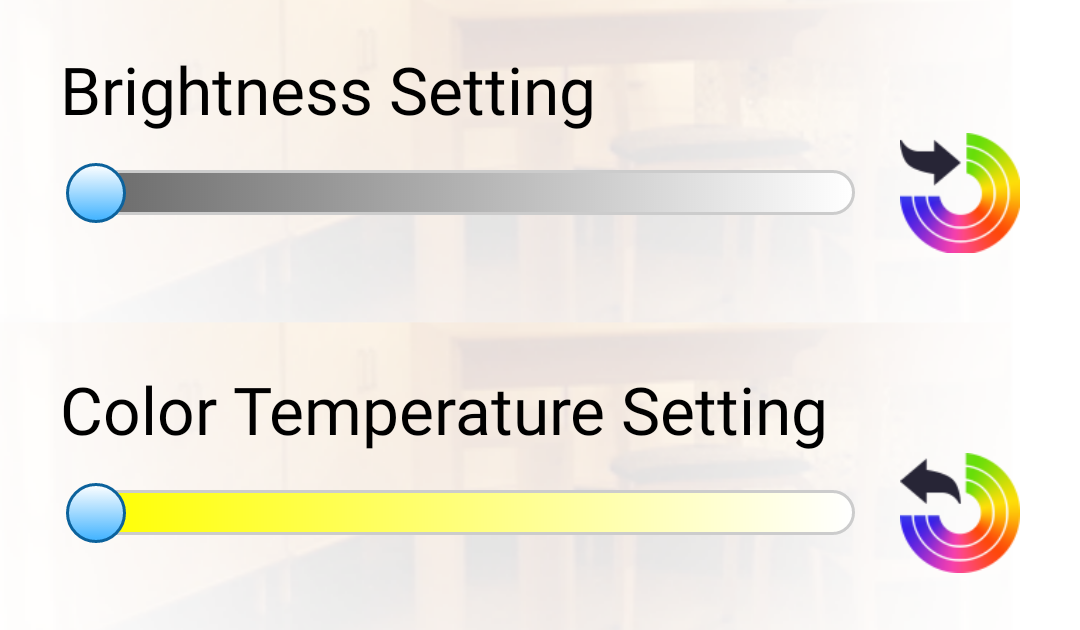

When DaliPhone is in tunable white mode, the slider bar changes its color from
gray/white to yellow/white. Now the user can choose the color temperature from
2700K CCT to 6500K CCT. The working principle of tunable white luminaire
is based on the DALI device type 8 (Color control), which is stipulated in IEC62386-209:2011.
Inside the luminaire, the tunable white LED module is made up by
two separate LED strings. One string consists of 2700K CCT lamps, and the
other string consists of 6500K CCT lamps. By individually adjusting
the light intensities of those two LED strings, desired color temperature can then be achieved.
|
|
| |
|
2-way Communication (Checking Status of Luminaire and Device)
| |
|
|
The 2-way communication
with the luminaire or device can be done by pressing
the Status button. A request command is sent
out to
the selected luminaire or device, which will respond
to the request by returning its status. The status information
displayed will be from 0%-100%. 0% means fully OFF,
and 100% means fully ON. The dimmed light level will be
displayed as a percentage according to the logarithmic scale
stipulated in IEC62386.
|
|
| |
|
