TWpuck is a 4" diameter round module soldered with 15 pieces LED lamps, which are
grouped into two separate strings. One string of eight LED lamps is of 2700K CCT, and the
other string of seven LED lamps is of 6500K CCT. By individually adjusting the light
intensities of those two LED strings, desired color temperature can then be achieved.
Optics of 40 degree angle are available upon request.
|
|
|
| |
| |
 |

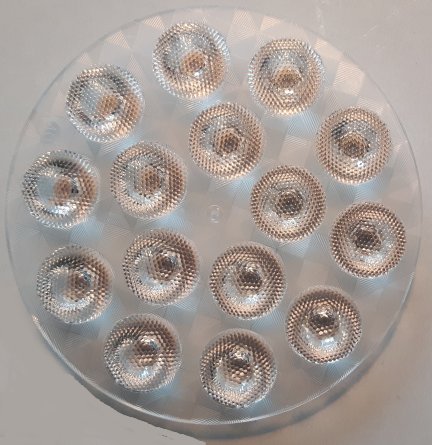

If a specific application needs the light beam to be more focused, a secondary optic
will be required to put on top of the TWpuck. Then a metal ring is used to secure the
optics and LED module together onto the gear tray of the tunable white luminaire. |
| |
| |
| |
|
Specification of TWpuck |
| Driver type |
Constant current |
| Forward voltage |
18V (7 LED lamps) and 24V (8 LED lamps) |
| Power at driving current |
max 16W at 350mA |
| max 32W at 700mA |
| max 47W at 1050mA |
| LED lamp |
CREE XPG of 2700K and 6500K CCT |
| PCB |
Metal clad |
| Electrical connection |
Class 2 |
| Dimension |
3-7/8" (98mm) diameter |
| Weight |
1 oz |
| Secondary optics (optional) |
95mm diamter, 11mm height |
|
|
|
